Pharmacies serve as essential providers of prescription medications, over-the-counter drugs, and various health care products. Additionally, they offer a selection of snacks and household essentials for customer convenience. To maintain the quality of certain medications, snacks, and beverages, a cooling system is required. Given that these establishments are typically small-format retail stores, utilizing less than 25,000 square feet, the refrigeration system must be compact and capable of performing multiple functions beyond cooling the refrigerated areas.
Requirement
Replace an existing system during a refresh of a store in Evanston, IL, with a focus on energy efficiency.
Solution
A Zero Zone Genesys® CO2 system met the needs for comprehensive refresh. CO2 systems operate at peak efficiency in cooler climates. This site typically remains below CO2’s critical temperature of 87.8°F year-round, which is the most energy-efficient mode for these systems. Since CO2 remains in a liquid state for most of the refrigeration cycle in subcritical mode, the overall system pressure is lower, reducing the workload on the compressors.
Heat reclamation is an innovative process that enhances energy efficiency by reusing excess heat for other purposes. In a refrigeration system, refrigerant absorbs heat from areas that need cooling. This heat is typically removed by
the condenser, which releases it into the environment. However, with heat reclamation, this ‘waste heat’ is captured and repurposed.
This Genesys® CO2 system utilizes heat reclamation to heat domestic hot water and the building during winter, thereby eliminating the need for a separate water heater or furnace. This approach not only reduces energy consumption but also lowers operational costs and environmental impact. During the summer, this system uses a cold-water loop to circulate cooling for the store’s air conditioning system. This process eliminates the need for a separate HVAC system, ensuring efficient and cost-effective cooling.
Although the Zero Zone Genesys® CO2 system has a standard platform, we specialize in custom-engineered refrigeration solutions. Zero Zone designed, built, and installed this Genesys® CO2 system to fit the same footprint and connections as the previous system. We are committed to working closely with you to understand and be responsive to your specific needs.
System & Site Features

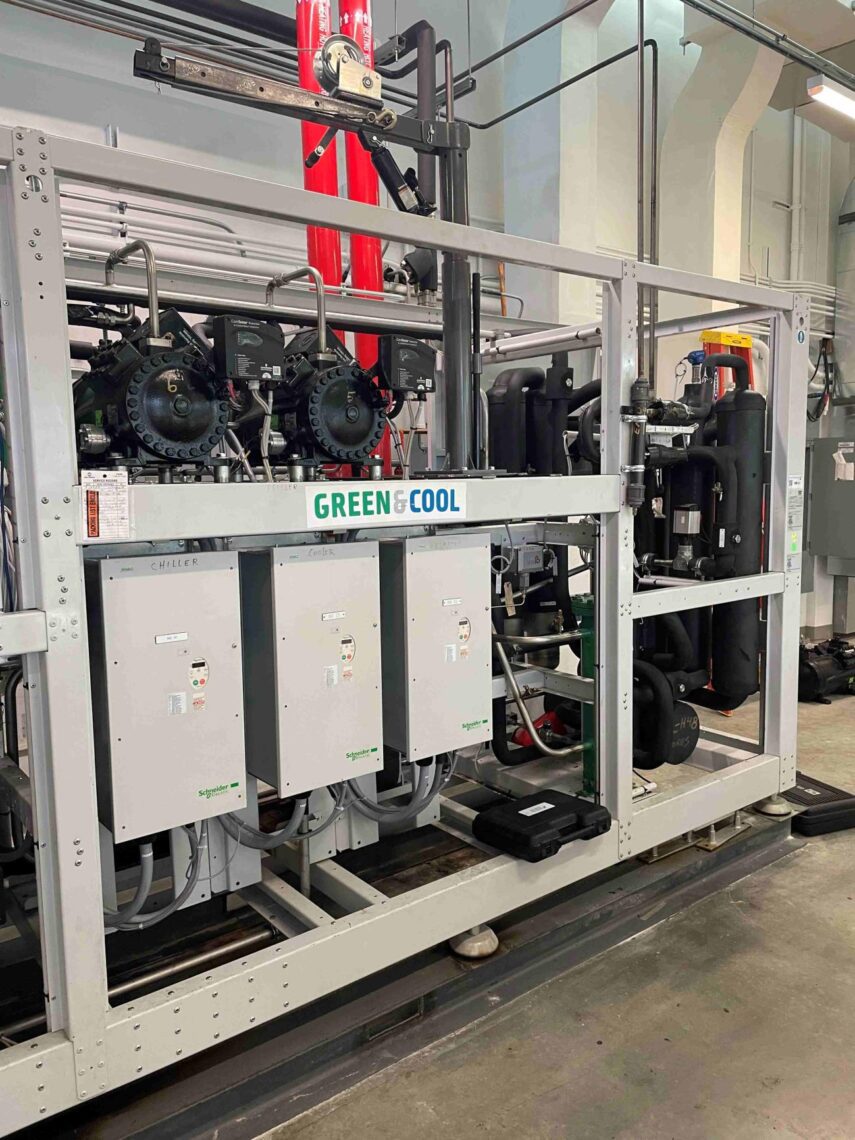

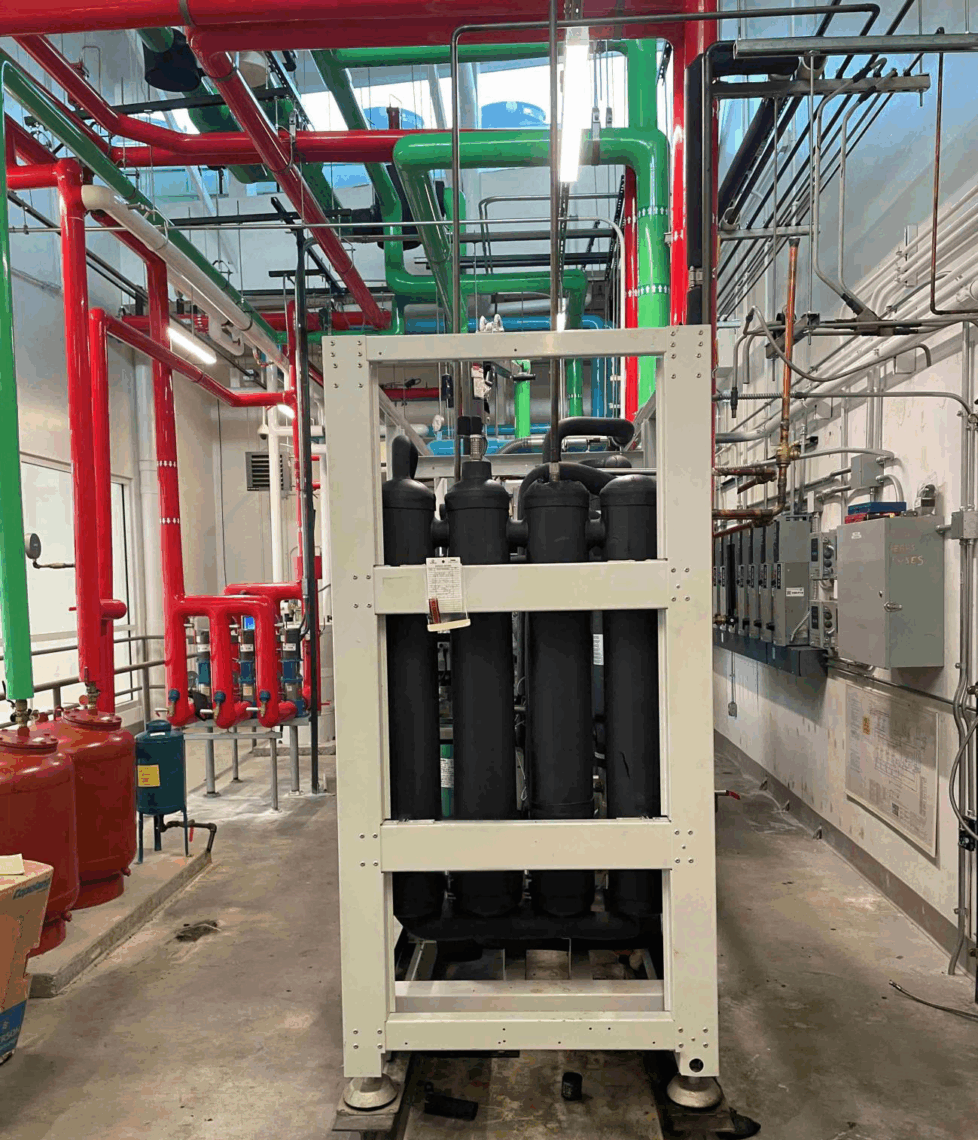

Viewable through the second-floor windows, this system is color-coded to show the different sides to this system. The orange pipes carry the heat for the hot water, the red pipes highlight the store heating system, and the green is for the geothermal system. The blue pipes highlight the refrigerated portion for the store’s air conditioning system. This fully functional retail store serves as a model for utilizing renewable energy while educating the public on its practical applications.
System Features
- CO2 as a refrigerant is environmentally friendly and energy efficient.
- CO2 can be up to 20% more efficient than traditional HFC systems.
- Waste heat reclamation captures waste heat to repurpose it for heating spaces and water.
- On average, the energy savings achieved through heat reclamation technology are 15-20%.
- A geothermal heat pump stores heat energy for later use.
- Zero Zone engineers custom-tailored this Genesys® CO2 system’s waste heat for use within the site’s underground geothermal heat storage system.
- An E3 Supervisory Control Panel reduces the complexity of system operation and management.
- This Zero Zone Genesys® Natural Refrigeration Solution uses an advanced E3 controller. Not only does this controller have a touch-screen display, but it also has a web-accessible interface. This allows the user to remotely monitor and control the entire system. The controller allows this Genesys® system to optimize its energy usage through advanced refrigeration algorithms and building control strategies. This new controller provides faster response times should any problems be detected.
Specializing in CO2 Refrigeration
Natural refrigerants are becoming the standard as the industry moves away from systems that traditionally use hydrofluorocarbons (HFCs). Zero Zone offers a training course in CO2 systems to prepare current and next generation-technicians for the future of refrigeration. See our current openings and register for a class. Although CO2 systems are appearing more often now, they are not new. Genesys® Natural Refrigeration Solutions made its debut over a decade ago, and Zero Zone has standardized a platform for CO2 systems. Zero Zone became the first to offer 90-bar rated CO2 display cases in September of 2024.
Learn more about 90-bar and its application
