RVMC • Industry Leading Display Power Proven to Drive Sales

Crystal Merchandiser® Cooler

Enhance Your Sales and Display More with Zero Zone Crystal Merchandiser Reach-In Coolers. The energy-efficient design maximizes product visibility and shelf space.

  • 27.8% less energy costs
  • 24.4% more capacity
  • 1 square foot more product facings

Than leading competitor reach-in medium temp display case.

Crystal Merchandiser Overview

Beverages
Dairy
Deli
Fresh Meat
Produce
Fresh Bakery
Seafood
Floral

Built in the USA, these innovative display cases maximize the energy efficiency of a closed-door case with the visual display power of open multi-decks. Using industry leading lighting technology and advanced cooling with a top-mounted coil, Crystal Merchandiser reach-in coolers reduce energy costs, reduce product shrink, and improve display capabilities to drive more sales

Main Features of the Crystal Merchandiser

Improve Your Product Display & Shopping Experience with a Crystal Merchandiser Reach-In Cooler
Reach-In coolers designed to save on energy, hold more product, & display more variety.

Innovative Product Lighting
ChillBrite LED lighting offers the most brilliant, consistently even, and dependable product lighting available. These lights are custom designed exclusively for this purpose.
Rugged, Reliable Structure
Internal, reinforced steel end frames ensure superior structural integrity for the entire case.
Airflow
Top mounted coil with counter-flow design optimized for maximum cooling capacity and higher energy efficiency
Easy Installation by Forklift
Engineered for easy forklift handling, this design allows lifting from either end. The reinforced bottom assembly featuring steel forklift plates not only saves time during unloading but also streamlines the installation process.
Rigorous Testing
Rigorous testing is conducted to guarantee consistent and even temperatures throughout the case, ensuring a uniform and reliable temperature performance.
Comprehensive Product Support
We employ a multi-layered approach to support our products from conception to operation. Our local sales representatives can engage with retailers in-person, offering personalized product presentations and Zero Zone solutions.
Unmatched Insulation
The 1.5-inch-thick insulation boosts energy efficiency maintains stable temperatures for product freshness and leads to energy savings.
EPA Compliant
Known for its high thermal resistance and durability, closed-cell foam insulation provides an effective barrier against heat transfer while meeting stringent environmental guidelines.
Easy Maintenance Access
A top electrical enclosure provides quick and easy access for maintenance.
74” Tall Doors
Offer excellent product visibility, enhancing the shopping experience.

Standard Features & Optional Features

Enhance your experience with a range of optional features tailored to your unique needs.
Feature
Standard
Optional
Exterior Color
Black
36 Custom Color Options
Interior Color
Black
36 Custom Color Options
Doors
CoolView® Ultra™ Black No Heat Glass
CoolView® Ultra™ Satin Silver No Heat Glass, CoolView® Ultra™ Black Heated Door, CoolView® Ultra™ Satin Silver Heated Door
Interior Lighting
ChillBrite 4000K
ChillBrite 3500K
Refrigerant
R448A
HFC, CO2 (45-bar and 90-bar)
Refrigerant Connection
Refrigerant Out Top Back
Refrigerant Out Back, Refrigerant To Bottom Inside
Electrical Connection
Electric Out Top (EOT)
Electric Out Back, Electric To Bottom
Expansion Valve
Mechanical
Electronic

Model

Our Crystal Merchandiser Reach in Coolers are Available in Two Models
24" X 74"

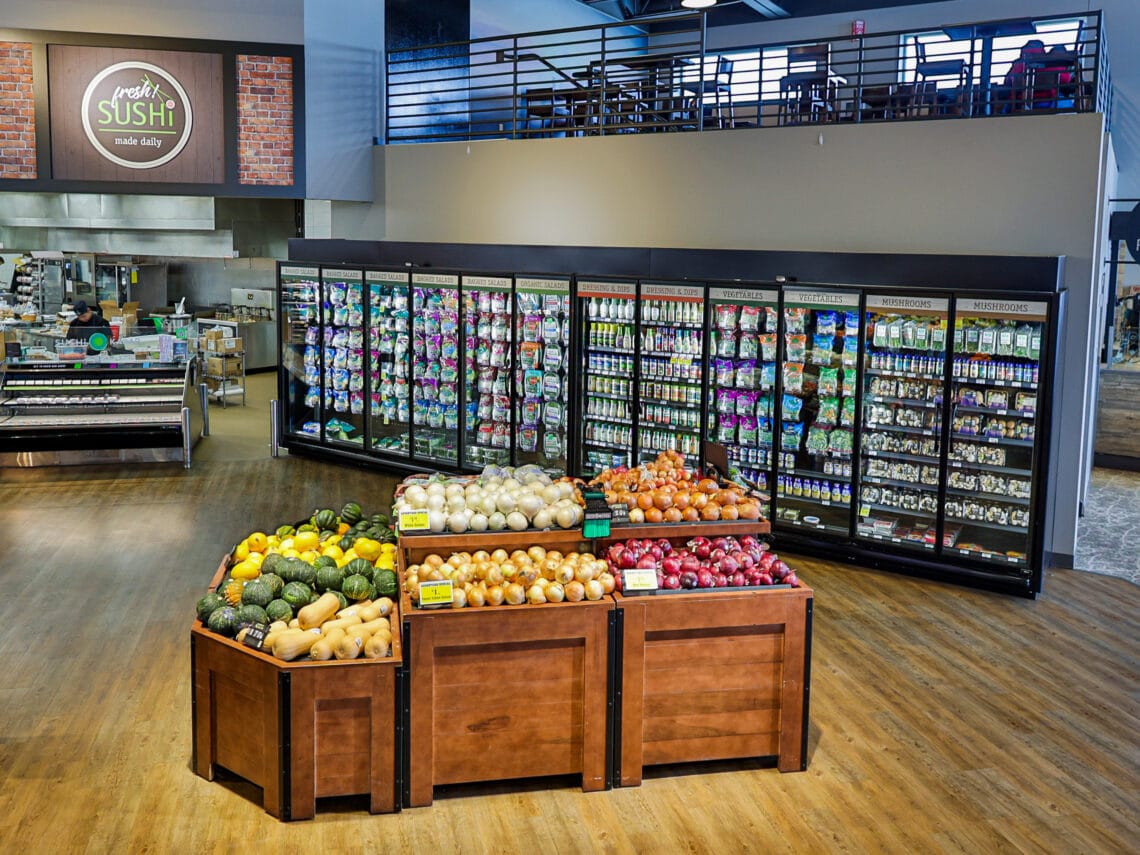

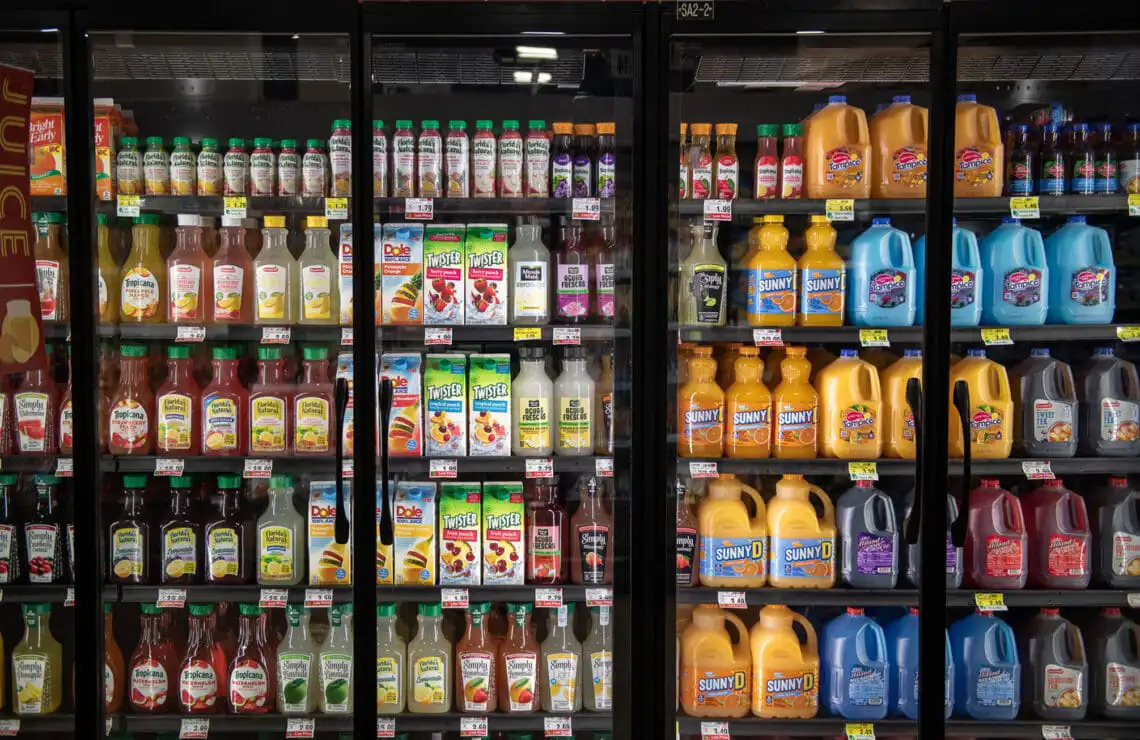

Crystal Merchandiser RVMC24

This stunning case is designed to fit in the same space as open multi decks, while taking advantage of the substantial energy savings that the Crystal Merchandise is known for.

Available in:

  • 4′ (2 door)
  • 6′ (3 door)
  • 8′ (4 door)
  • 12′ (6 door)

Door Width & Height

  • 24″ x 74″

Door Overview

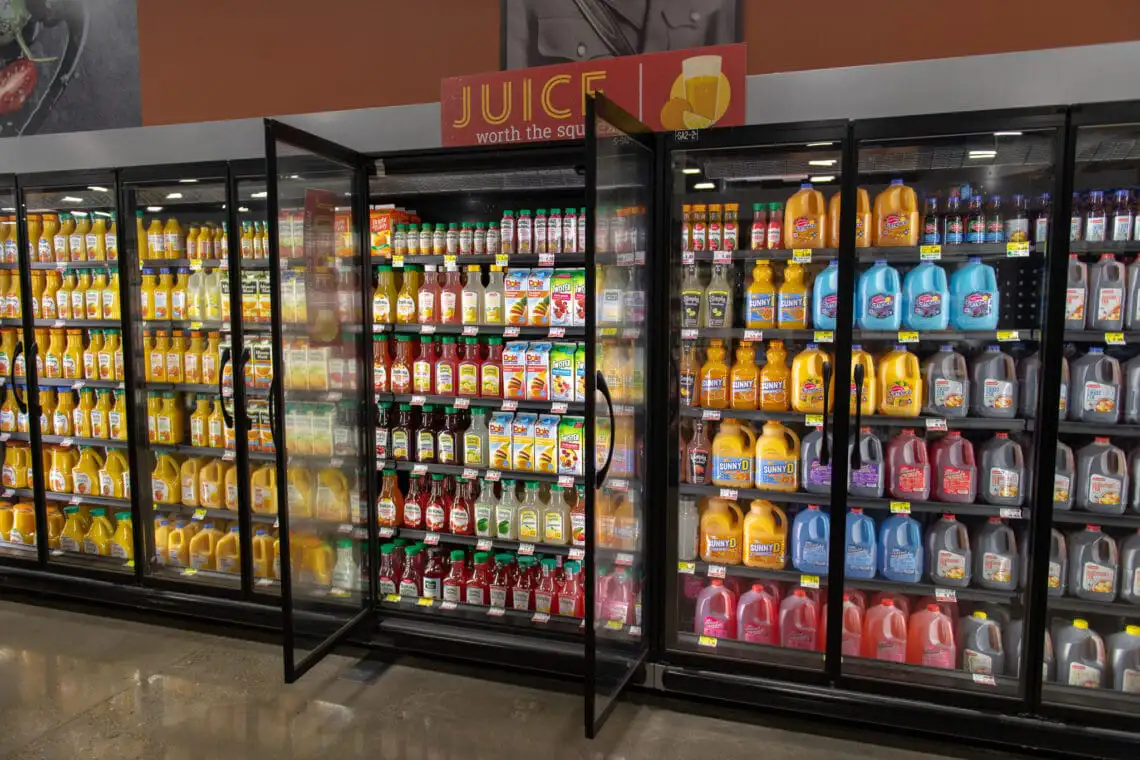

  • CoolView Ultra French Doors
30" X 74"
Crystal Merchandiser RVMC30

Maintain a consistent sleek and stunning appearance across all your medium and low temperature displays with our Crystal Merchandizer freezer. Showcase frozen foods and ice creams beautifully with its panoramic viewing.

Available in:

  • 5′ (2 door)
  • 7.5′ (3 door)
  • 10′ (4 door)
  • 12.75′ (5 door)

Door Width & Height

  • 30″ x 74″

Door Overview

  • CoolView Ultra Doors with left or right handle configurations

Structure & Sizing Options

Explore our Structure & Sizing Options for tailored solutions to meet your specific needs.

RVMC24 ONLY
Ultra Narrow
To fit your floor plan, consider an RVMC24 as an ultra narrow supermarket or grocery store reach-in display case. It is 10 5/8" narrower than our standard depth cases.

RVMC24 ONLY
Back-to-Back Ultra Narrow
The ultra-narrow option can also be ordered back-to-back, reducing the space between cases and opening more floor space. Shown in photo joined to ultra-narrow.

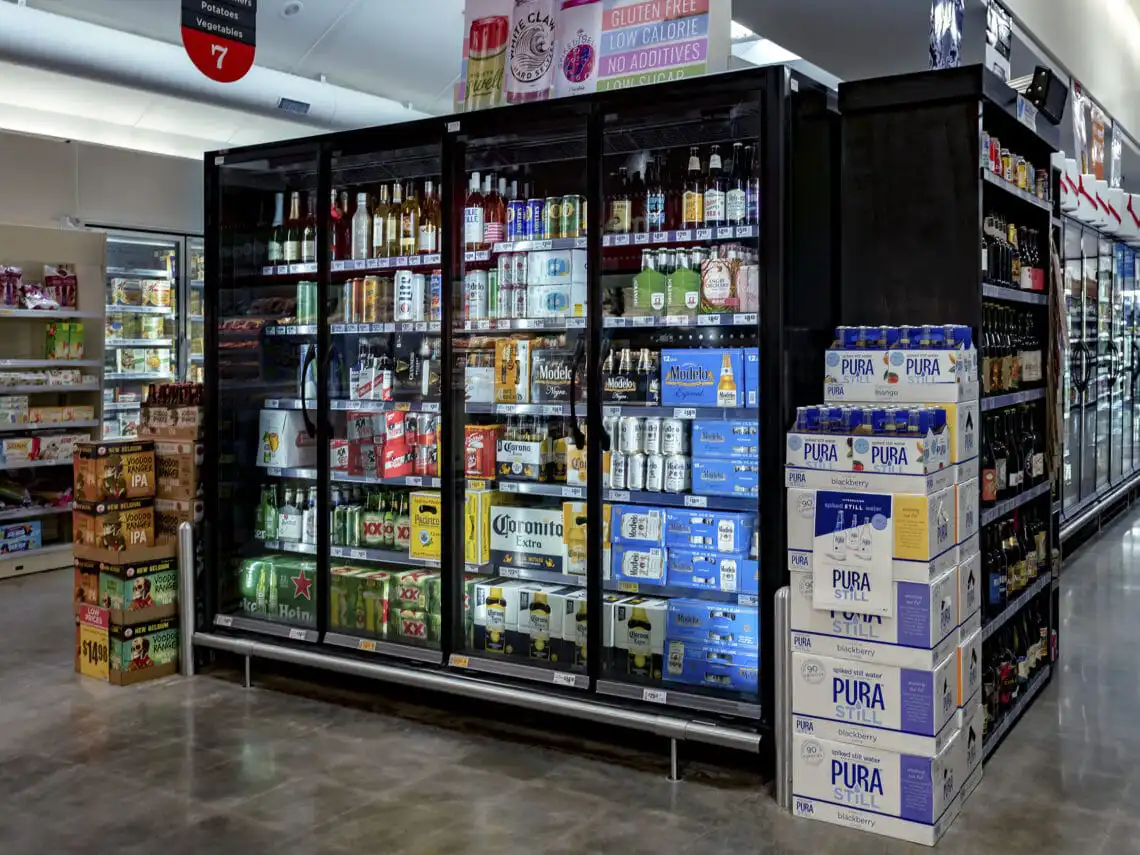

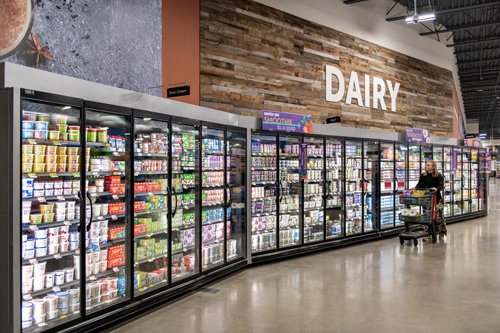

Deep Option
The RVMC24 and RVMC30 can be ordered as a deep case with a bottom wire rack that is 4 3/4" deeper, which can increase product capacity by up to 28%, helping you make the most of your space.
Rear Load Accessibility
Both the standard and the deep models can be configured as rear load making it easier and more seamless to stock directly from a walk-in.
Hybrid Configuration
Our field-installed top-mount condensing unit kit eliminates the need for a backroom refrigeration system. Hybrid display cases offer superior accessibility.

Yes, the Crystal Merchandiser® has a rear-load option for your refrigerated display case to make stocking easy and accessible!

For our Crystal Merchandiser®, the standard electrical set up is electric out the top but it is also available in with electric out back or bottom to fit your unique store needs.

To maintain peak performance of your Crystal Merchandiser®, regular maintenance checks are essential. These checks ensure the system runs efficiently and performs optimally.

Yes, absolutely! Our display cases are available in 36 different colors, giving you a wide range of options to perfectly match your store’s aesthetic. Additionally, we offer various door options to further customize the look and functionality of your display cases.

Resources

Crystal Merchandiser® Display Cases
Crystal Merchandiser® Ultra Narrow (RVMC24UN)
PDF • 2 MB
Crystal Merchandiser® Cooler (RVMC24)
PDF • 2 MB
RVMC30DRL (Deep Rear Load Cooler w/ 30″ Doors)
PDF • 2 MB
RVMC30RL (Rear Load Cooler w/ 30″ Doors)
PDF • 2 MB
RVMC30BC (Bottom Coil w/ 30″ Doors)
PDF • 2 MB
RVMC30D (Deep Cooler w/ 30″ Doors)
PDF • 2 MB
RVMC30 (Cooler w/ 30″ Doors)
PDF • 2 MB
RVMC24BBUN (Back-to-Back Ultra Narrow Cooler w/ 24″ Doors)
PDF • 2 MB
RVMC24UN (Ultra Narrow Cooler w/ 24″ Doors)
PDF • 2 MB
RVMC24DRL (Deep Rear Load Cooler w/ 24″ Doors)
PDF • 2 MB
RVMC24RL (Rear Load Cooler w/ 24″ Doors)
PDF • 2 MB
RVMC24D (Deep Cooler w/ 24″ Doors)
PDF • 2 MB
RVMC24 (Cooler w/ 24″ Doors)
PDF • 2 MB
Hybrid™ Display Cases
RVMC30D (Crystal™ Deep Hybrid™ Cooler w/ 30″ Doors)
PDF • 2 MB
RVMC30 (Crystal™ Hybrid™ Cooler w/ 30″ Doors)
PDF • 2 MB
RVMC24D (Crystal™ Deep Hybrid™ Cooler w/ 24″ Doors)
PDF • 2 MB
RVMC24 (Crystal™ Hybrid™ Cooler w/ 24″ Doors)
PDF • 2 MB
Discontinued
RVMC30 Hybrid™
PDF • 406 KB
RVMC24 Hybrid™
PDF • 412 KB
Crystal Merchandiser® Revit Files
Revit – RVMC30D
ZIP • 2 MB
Revit – RVMC30
CDFV2 • 5 MB
Revit – RVMC24D and RVMC24DRL
ZIP • 4 MB
Revit – RVMC24 and RVMC24RL
ZIP • 2 MB

Compare

Comparison to other product families
Highlight Cooler Highlight Cooler French Doors Crystal Cooler Crystal Cooler French Doors

 Reveal Multi Deck w/ Doors
Overview Our workhorse cooler to meet your varied needs Workhorse cooler and easy access to product with French Doors The modern design and options add functionality to your display Merchandise your product to the fullest with French doors A unique solution tailored to enhance your retail environment
Applications Daily/Deli, Beverage, Produce, Fresh Meat, Fresh Seafood, Floral Daily/Deli, Beverage, Produce Daily/Deli, Beverage, Produce, Fresh Meat, Fresh Seafood, Floral Daily/Deli, Beverage, Produce, Fresh Meat, Fresh Seafood, Floral Daily/Deli, Beverage, Produce, Fresh Meat, Fresh Seafood, Floral
Design Style Classic Classic Contemporary Contemporary Transitional
No of doors 1,2,3,4,5 2,3,4,6 2,3,4,5 2,3,4,6 2,3,4,6
Door Width 30″ 24″ 30″ 24″ 24″
Door Height 68″ 68″ 74″ 74″ 69″
Facings (5/6 door) 68.2 ft 2 64.5 ft 2 74.4 ft 2 69.8 ft 2 63.4 ft 2
Packout (5/6 door) 136.4 ft 3 118.3 ft 3 146.8 ft 3 133.4 ft 3 132.1 ft 3
Tall Option  Yes (73″ door) No No No Yes (74″ door)
Hybrid Option Yes No Yes Yes Yes
Rear Load No No Yes Yes No
Back-to-Back No No No No No
Ultra Narrow No No No Yes No
Back-to-Back Ultra Narrow No No No Yes No
Back-to-Back Tall Yes No No No No
Deep No No Yes Yes No
High Humidity Yes No Yes Yes No



Responsible Energy Conservation

Zero Zone dares to present customers with a unique value proposition: quality products that require fewer resources to assemble, use less energy, last longer, and have lessened environmental impact, both during manufacture and in actual use. Our goal is to be the leader in sustainable refrigeration and living up to our name we want to do ZERO harm to the environment and use refrigerants with ZERO ozone depletion. Zero Zone is proud to be a part of the U.S. Environmental Protection Agency’s (EPA) Advanced Refrigeration Partnership for over 15 years. We are also proud Gold Member and supporter of the North American Sustainable Refrigeration Council (NASRC).
